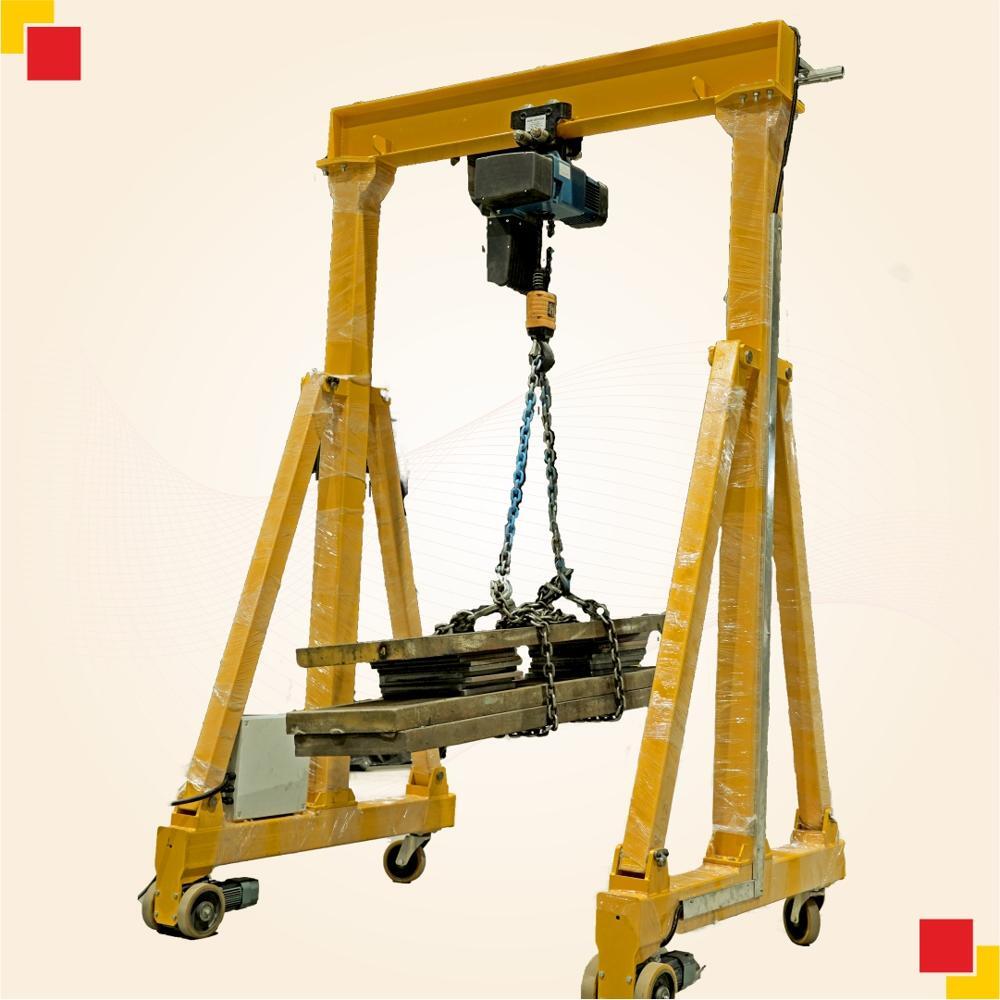

Portable Gantry Crane

Name: Portable Gantry Crane
Brand: SHIVAY ENGINEERING WORKS
Price: 95000 INR
Availability: InStock

Price 95000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Portable Gantry Crane Specification

Recommend Power
Manual operation or 1-2 kW (if motorized hoist is used)

Crane Traveling Speed
Manual movement

Condition
New

Trolley Travel Speed
Manual or up to 10 m/min (motorized option)

Slewing Angle
Not applicable (Gantry cranes travel linearly)

Crane Total Weight
Approx. 150-300 kg (depends on capacity)

Feature
Portable, Adjustable Height, Easy Assembly

Working Presssure
Not Applicable (Mechanical operation)

Material
Metal

Crane Type
Portable Gantry Crane

Application
Warehouse, Factory

Span Length
2-6 meters (customizable)

Product Type
Gantry Crane

Loading Capacity
500 kg to 2000 kg

Lifting Time
Dependent on hoist mechanism (manual/electric)

Lifting Capacity
Up to 2 Tons

Lifting Height
Up to 5 meters

Control Type
Manual push or Electric pendant control

Limit Switch
Available with electric hoist

Emergency Stop
Yes

Power Supply
220V/380V AC for motorized option

Hoisting Method
Chain Block/Electric Wire Rope Hoist (optional)

Surface Finish
Powder Coated (Yellow/Custom color)

Transportability
Easily transportable and re-deployable

Wheel Type
PU Wheels/Lockable castor wheels for easy movement

Customization
Available as per specific requirements

Height Adjustment
Yes, telescopic legs enable adjustable height

Noise Level
Low (manual), 75dB with electric hoist

Assembly Type
Modular bolt-together design

Indoor/Outdoor Use
Suitable for both, with weather protection on request

Portable Gantry Crane Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA)

Supply Ability
1 Unit Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia, South America, Africa

Main Domestic Market
All India

About Portable Gantry Crane

Portable Gantry Crane is a heavy-duty industrial machine designed to lift enormous and extremely heavy loads. It is very high in strength and durability. This machine is easily movable and easy to operate. It has modular construction and the frame is made with steel plates for better and durable performance. Our Portable Gantry Crane can be availed at most competitive price.

A portable gantry crane is a versatile piece of lifting equipment that can be moved around as needed. Unlike a fixed overhead crane, a portable gantry crane does not require permanent installation, making it ideal for a variety of applications, including:

Construction sites
Workshops
Garages
Warehouses
Manufacturing facilities

Portable gantry cranes are typically made of aluminum or steel and come in a variety of capacities, ranging from a few hundred pounds to several tons. They are also available in a variety of heights and spans to accommodate different lifting needs.

Here are some of the key features of portable gantry cranes:

Mobility: Portable gantry cranes are designed to be easily moved from one location to another. They are often equipped with casters or wheels that allow them to be pushed or pulled by hand. Some models may also be motorized for added convenience.
Adjustability: Many portable gantry cranes have adjustable heights, allowing you to lift objects to different heights. This is a helpful feature for tasks such as loading and unloading trucks or installing machinery.
Versatility: Portable gantry cranes can be used for a wide variety of lifting tasks. They can be used to lift engines, generators, machinery, building materials, and much more.
Relatively low cost: Portable gantry cranes are a more affordable option than fixed overhead cranes.

If you are looking for a versatile and portable lifting solution, a portable gantry crane may be a good option for you.

Technical Details

Highly Adjustable and Customizable

This portable gantry crane stands out for its telescopic legs, enabling users to finely tune the working height up to 5 meters. Coupled with options for span length, lifting capacity, finish, and accessories, the crane can be tailored to precise site requirements-from compact warehouse corners to open factory floors.

Enhanced Mobility and Simple Assembly

Weighing between 150 and 300 kg depending on the model, the crane is easily maneuverable. PU wheels or lockable castors facilitate effortless positioning. Its modular, bolt-together construction allows quick assembly, disassembly, and transportation, making it an ideal choice for changing job sites or flexible facility layouts.

Safe and Reliable Operation

Safety is paramount, with manual push or electric pendant controls, emergency stop function, and limit switches on electric hoists. The design ensures low noise when operated manually and up to 75dB with motorized options. Weather protection and quality materials ensure dependable performance, indoors or outdoors.

FAQ's of Portable Gantry Crane:

Q: How do I adjust the height of the portable gantry crane?

A: The crane features telescopic legs, which allow you to manually or mechanically adjust its height up to 5 meters, providing flexibility for different lifting requirements in your workspace.

Q: What hoisting methods are available and how do I choose the right one?

A: You can select between a manual chain block or an electric wire rope hoist, depending on your lifting frequency, speed requirements, and available power supply. Manual is suited for lighter or less frequent lifts, while the electric option is ideal for higher loads or efficiency.

Q: Where can the portable gantry crane be used?

A: This crane is suitable for use in warehouses, factories, and workshops. Its robust, powder-coated construction and optional weather protection also allow it to be deployed in outdoor environments as needed.

Q: What is the typical assembly process for this crane?

A: The crane adopts a modular, bolt-together design, making it straightforward to assemble and disassemble with common hand tools. This design ensures quick setup, easy relocation, and efficient storage.

Q: What are the main benefits of using this portable gantry crane?

A: Key advantages include adjustable height, customizable span and finish, simple assembly, easy mobility with PU/lockable wheels, and adaptability for both indoor and outdoor use. Safety features and easy controls provide secure, efficient operation.

Q: How can I customize the crane for my specific application?

A: Customization is available for span length, lifting capacity, finish color, hoist type, and accessories. Provide your specific requirements to the manufacturer or supplier to receive a tailored solution.
